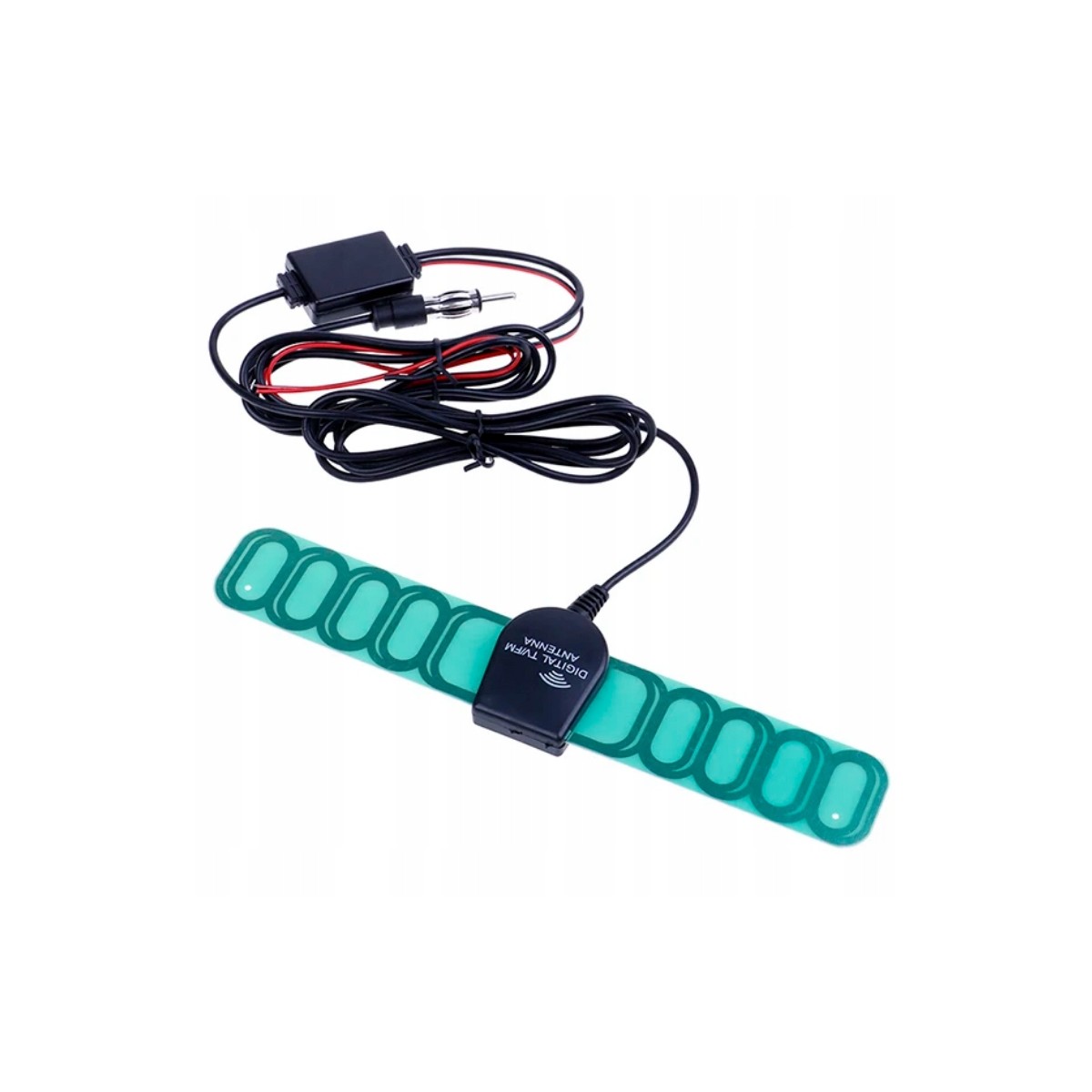

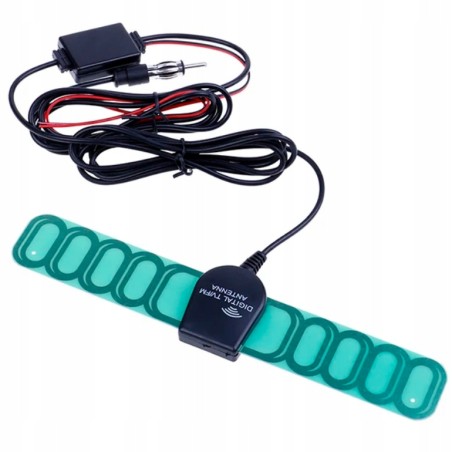

2-in-1 UNIVERSAL TV ANTENNA + FM RADIO SIGNAL BOOSTER FOR CARS

Wide range of applications: suitable for cars and other FM/TV signal receivers to improve signal strength.

• The antenna is made from highly conductive materials and features a signal amplification function that improves reception of weak signals.

How to use:

1. Peel off the sticker on the underside of the antenna base and place the base in a suitable position on the car dashboard;

2. Connect the male TV/FM plug to the car radio to receive clear radio signals;

3. You can also use other connectors, such as an F-connector, FM connector, SMA connector, etc.

Specifications:

Material: ABS

Installation position: on the car dashboard or on the rear-view mirror

Supply voltage: DC 10.5–16 V

Current: 10–35 mA

Operating frequency: UHF 40.5–223 MHz, VHF 450–903 MHz

Gain: UHF 22 + 3 dB, VHF 25 + 3 dB

Radio frequency: 88–108 MHz

Output impedance: 75 Ω

Output standing wave ratio: ≤3.0:1

Operating temperature: -35 °C–75 °C

Storage temperature: -40 ℃–80 ℃

Package contents:

• 1 x TV/FM antenna
