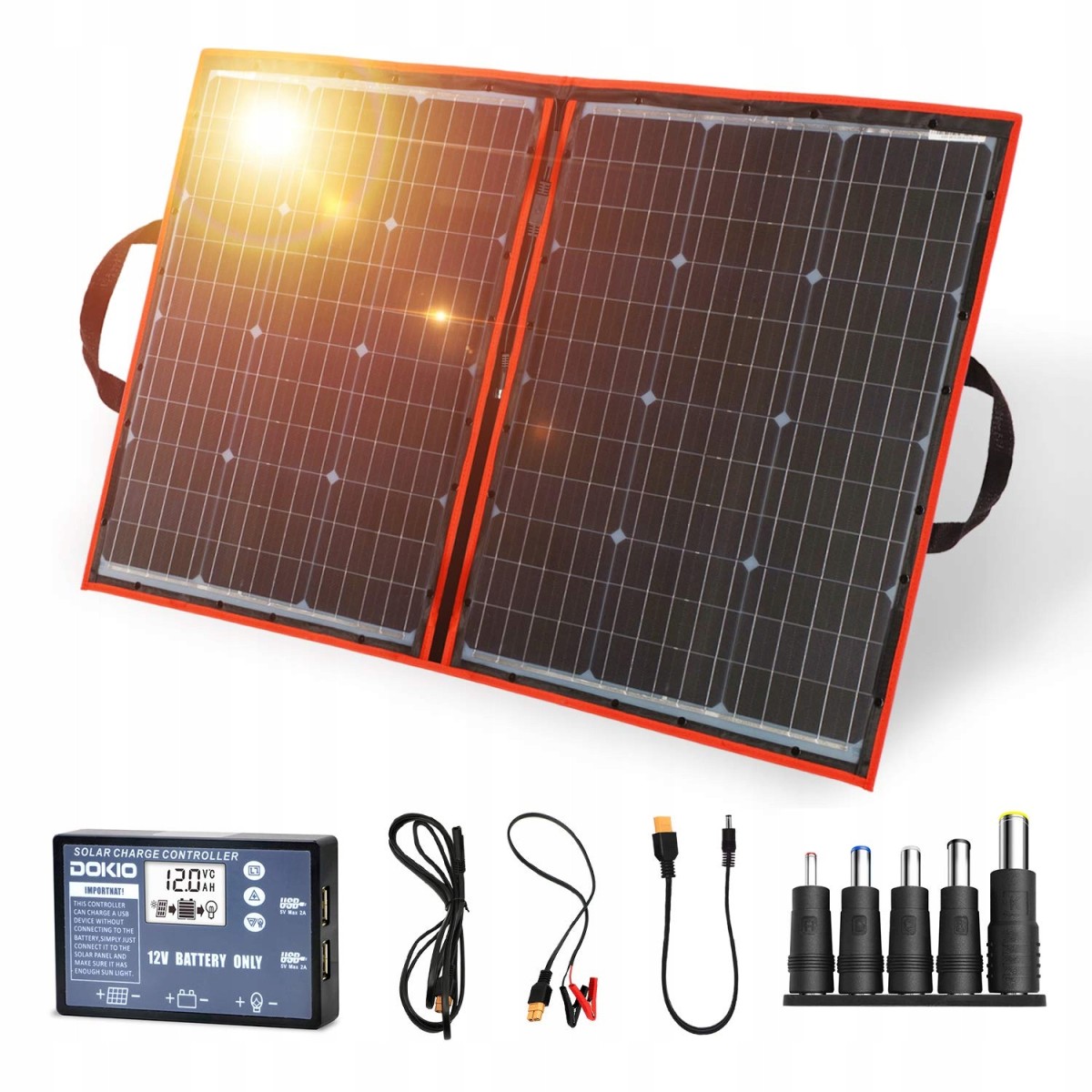

Portable, foldable solar panel with a maximum power of 110W and a voltage of 18V.

The solar panel is primarily designed to power USB devices and charge any 12V batteries (e.g. car batteries).

The included PWM controller allows you to connect 2 USB chargers, charge a 12V battery and connect an additional 12V powered receiver at the same time.

Note: the maximum power of 110W can only be achieved in ideal weather conditions, so it will usually be lower.

Technical parameters:

• Maximum power (Pmax): 110 W±3%
• No-load voltage (Vos): 22.50 V
• Maximum solar panel voltage (Vmp): 18.00 V
• Maximum solar panel supply current (mp): 6.12 A
• Maximum controller current: 10 A
• USB ports: 2x 5V 2A
• Net weight: 2.4 kg
• Folded size: 48 x 66 x 1.2 cm
• Dimensions when unfolded: 96 x 66 x 0.6 cm

Package contents:

• power tips: 8.0 mm/3.5*1.35 mm/5.5*2.1 mm/5.5*2.5 mm/6.4*4.0 mm
• DOKIO 110W solar panel
• DOKIO 10A PWM controller
• 3-metre cable (SAE to XT60)
• 1-metre cable (XT60 to battery terminal)
• Cable (JY60 to DC)
