Portable energy storage power station 1.3kWh inverter 48V 220V 1500W

Portable power station consisting of a separate 48V 27Ah 1.3kWh Li-Ion battery and a 48V 220V 2000/4000W inverter.

The set is designed to power devices requiring a standard mains voltage of 220-230V with a maximum rated power of 1500W.

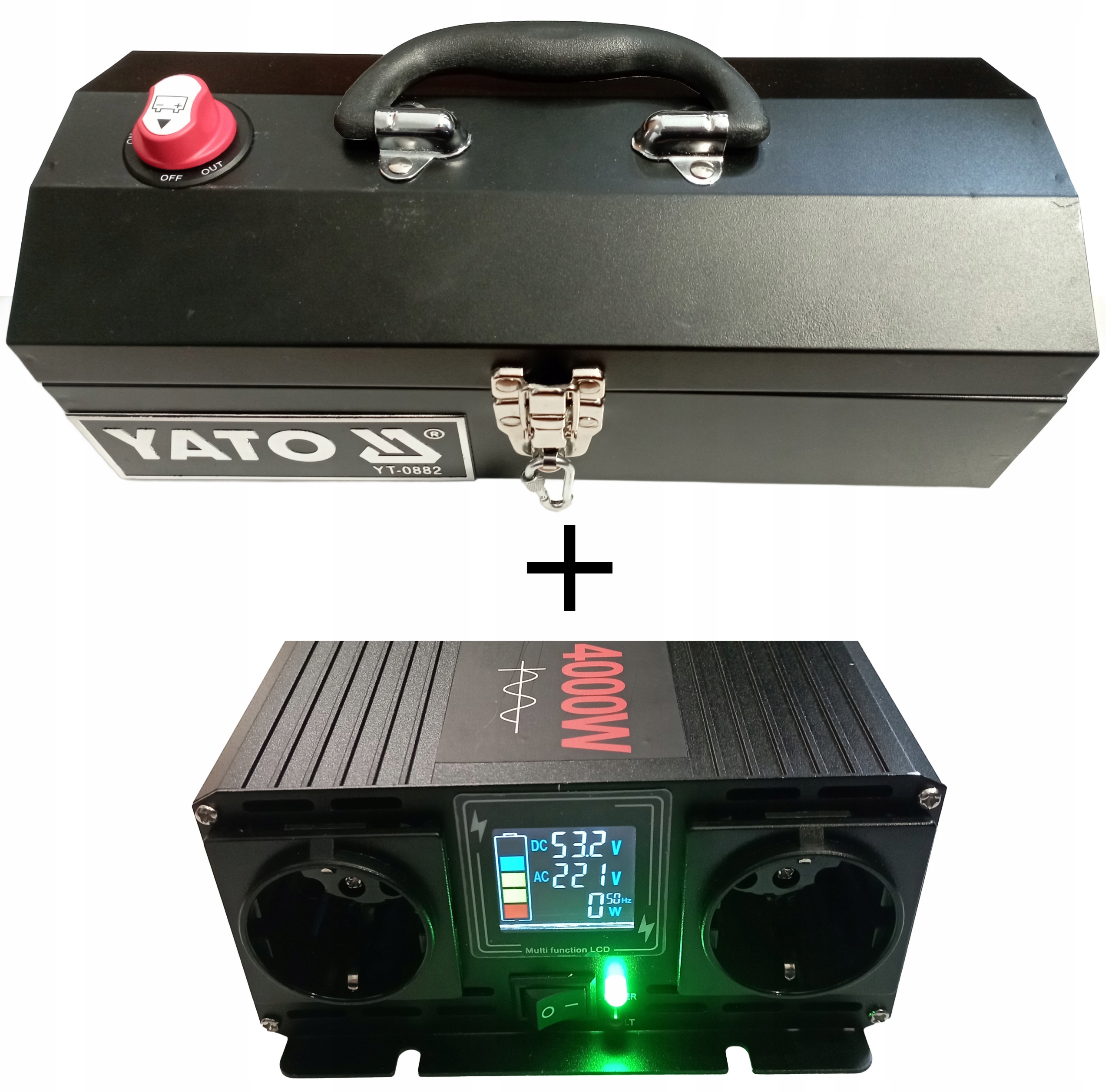

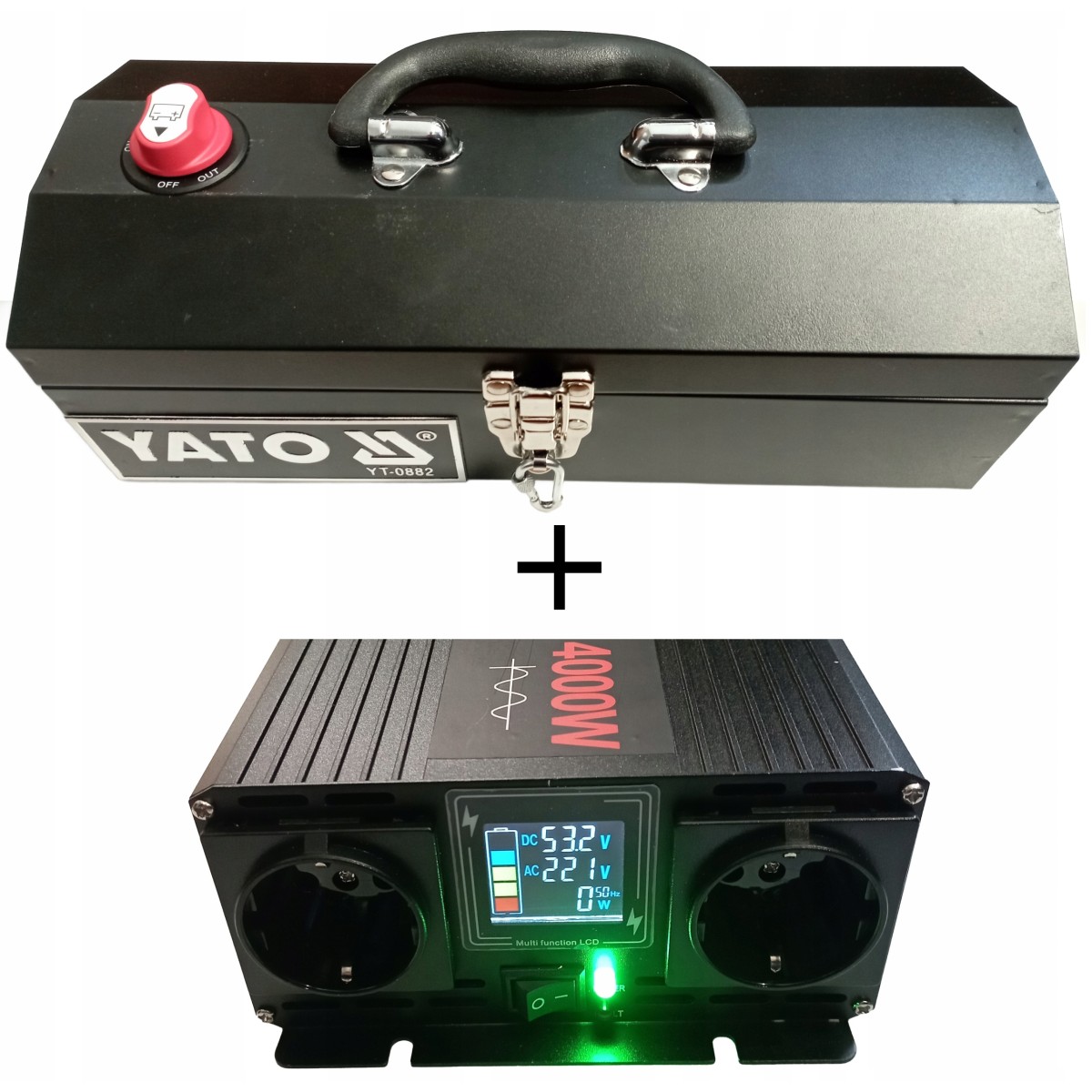

The power station consists of two elements that fit together in terms of dimensions. It is best to place the battery on the inverter and connect them with the included cable. The battery can be charged with the included charger or via solar panels equipped with an MPPT controller (only for 48V batteries).

Technical parameters:

• output voltage: 220V 50Hz variable AV sine wave, 2 sockets
• maximum permissible instantaneous power (of connected devices): 3000W
• maximum permissible continuous power (connected devices): 1500W
• battery capacity: 27Ah, 1.3kWh (measured)
• Battery voltage: 48V
• cells used: new 18650 3Ah 117 pcs.
• charging socket: 5.5/2.1mm
• main power plug: XT60H
• battery protection: BMS up to 60A, main fuse 60A, charging fuse 10A
• inverter protection against: short circuit, overload, overheating
• battery dimensions: 360x150x115mm
• inverter dimensions: 283x155x78mm
• battery weight: 8.3kg
• inverter weight: 2.6 kg
• battery and inverter casing is metal

The set includes:

• battery
• inverter
• 54.6V 280W 220V mains charger
• battery connection cable with inverter

At the time of shipment, the battery is charged to approximately 30-50% of its capacity, which extends its service life during storage.

Note: before connecting the cables, it is necessary to set the switch on the battery to the OFF position.

Note 2: After disconnecting the battery from the inverter, voltage from the capacitors may still be present at the inverter input. In this case, it is best to switch on the inverter without the battery and without any load for a moment.
