A8 OBD2 Car Head-Up Display – Projected onto the windscreen

Drive safely without taking your eyes off the road!

Introducing the advanced A8 Head-Up Display (HUD) – your personal assistant on the dashboard. This smart device projects key driving parameters directly onto your windscreen. Thanks to it, you no longer need to take your eyes off the road to check your speed or engine revs. All key information is always right in front of your eyes, which significantly increases safety and driving comfort, especially when driving fast at night.

The HUD A8 is not just a speedometer – it is a complete diagnostic tool that displays 12 different types of data in real time, synchronising with the vehicle’s on-board computer via the OBD2 port.

⭐ Why is the HUD A8 a must-have for every driver?

• Safety first: The HUD’s design allows you to keep your eyes on the road 90% longer compared to looking at a traditional dashboard. No more squinting or searching for gauges!
• Crystal-clear image: Thanks to the laser-etched optical lens and colour HD LED, the projection is clear and bright both in bright sunlight and when driving at night. The anti-reflective coating eliminates unwanted reflections and double images.
• Automatic brightness adjustment: The built-in light sensor adjusts the backlight intensity to suit the conditions outside, ensuring perfect readability at any time of day or night.
• Plug & Play – no glue or calibration: Installation takes less than 60 seconds! Simply plug the device into your car’s OBD2 port. The HUD will automatically synchronise with the vehicle’s system – no calibration or complicated setup required.
• Robust build quality for years to come: The casing is made from ABS and PC materials resistant to extreme temperatures (from -40°C to +80°C). The device works flawlessly even in hot weather, when the car interior heats up to 60°C.

📊 12 functions in one – everything you need:

1. Speed: Large, easy-to-read speed display.
2. Engine speed (RPM): Monitor engine revs in real time.
3. Water Temperature: Monitor the coolant temperature.
4. Battery voltage (Voltage): Keep a constant eye on the electrical system.
5. Fuel Consumption: Display of current and average fuel consumption (L/100 km, L/h).
6. ** Odometer/Trip:** Single trip and other journey data.
7. Alarm System: Warnings for speeding, low battery voltage, high water temperature, engine failure, and even reminders about driver fatigue and the need for an oil change.
8. Unit selection: Ability to switch between km/h and mph, ℃ and °F.
9. Backlit warning icons: The warning icon panel alerts you to potential problems.
10. Two display modes: Drive mode (Cruise) and Idle mode.
11. Post-trip summary: Displays average fuel consumption at the end of the journey.
12. Universal compatibility: Works with 99% of petrol and diesel cars equipped with an OBD2 port.

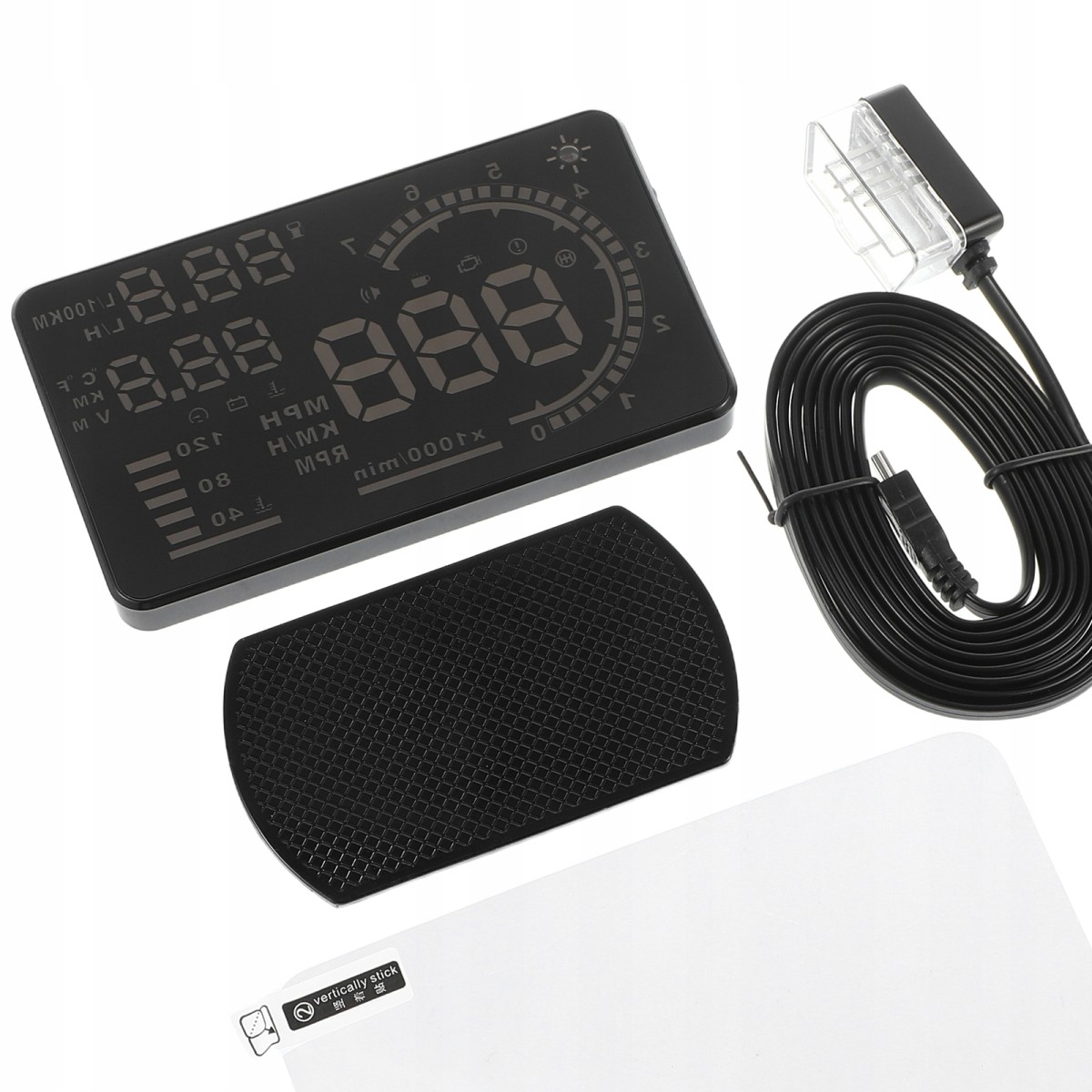

📦 Package contents:

• A8 HUD display – 1 pc.
• OBD2 cable – 1 pc.
• Anti-slip mat for dashboard mounting – 1 pc.
• User manual – 1 pc.

Technical specifications:

• Model: A8
• Colour: Black
• Housing material: ABS + PC (resistant to high/low temperatures)
• Dimensions: 125 x 75 x 15 mm
• Weight: 110g
• Operating voltage: 9V–16V DC (12V DC / 400mA)
• Quiescent current: < 3mA
• Operating temperature: -40°C to +80°C
• Atmospheric pressure: 86–106 kPa
• Alarm sound level: ≥ 30dB(A)

✅ Compatibility – check if the HUD will work in your car:

The device is compatible with:

99% of petrol and diesel cars manufactured after 2008 (in the US after 2004) with a standard OBD2 port.

Please note! The OBD2 model is NOT compatible with the following vehicles:

• American: Dodge, Jeep, Chrysler, Chevrolet manufactured before 2004.
• French and Italian: Fiat, Maserati, Lamborghini, DS, Peugeot, Citroën, Renault, Alfa Romeo, Lancia.
• Japanese: Suzuki, Mazda, Infiniti (QX50, Q50, Q50L, QX56), Toyota Avanza (2013), Lexus (IS250, EX250, ES300H), Honda (Jazz, CRV) and all Japanese models from before 2008.
• Korean: Certain KIA and Hyundai models (e.g. Hyundai Sonata 2013, KIA Soul PS 2017).
• Others: Hybrid vehicles, pick-ups, motorhomes, cars with modified on-board computers, Volvo, all Fiat Group and Chrysler models, as well as German cars manufactured before 2004.

OBD2 socket location:

It is usually located near the steering column (area A or B in the diagram). Most sockets are black, white, purple or blue.

❓ Frequently Asked Questions (FAQ):

Q: Is the HUD compatible with my car?

A: The device supports 99% of petrol and diesel cars with an OBD2 port, manufactured after 2008. Check the list of exclusions above.

Q: Is the display visible on a sunny day?

A: Yes. Thanks to automatic brightness adjustment and a laser-etched lens, the projection is perfectly visible even in direct sunlight.

Q: Do I need to calibrate the device?

A: No. The HUD automatically synchronises with the vehicle’s system when connected to the OBD2 port.

Q: Will the anti-slip mat leave marks on the dashboard?

A: No. The mat allows for installation without the use of adhesives and leaves no sticky residue.
