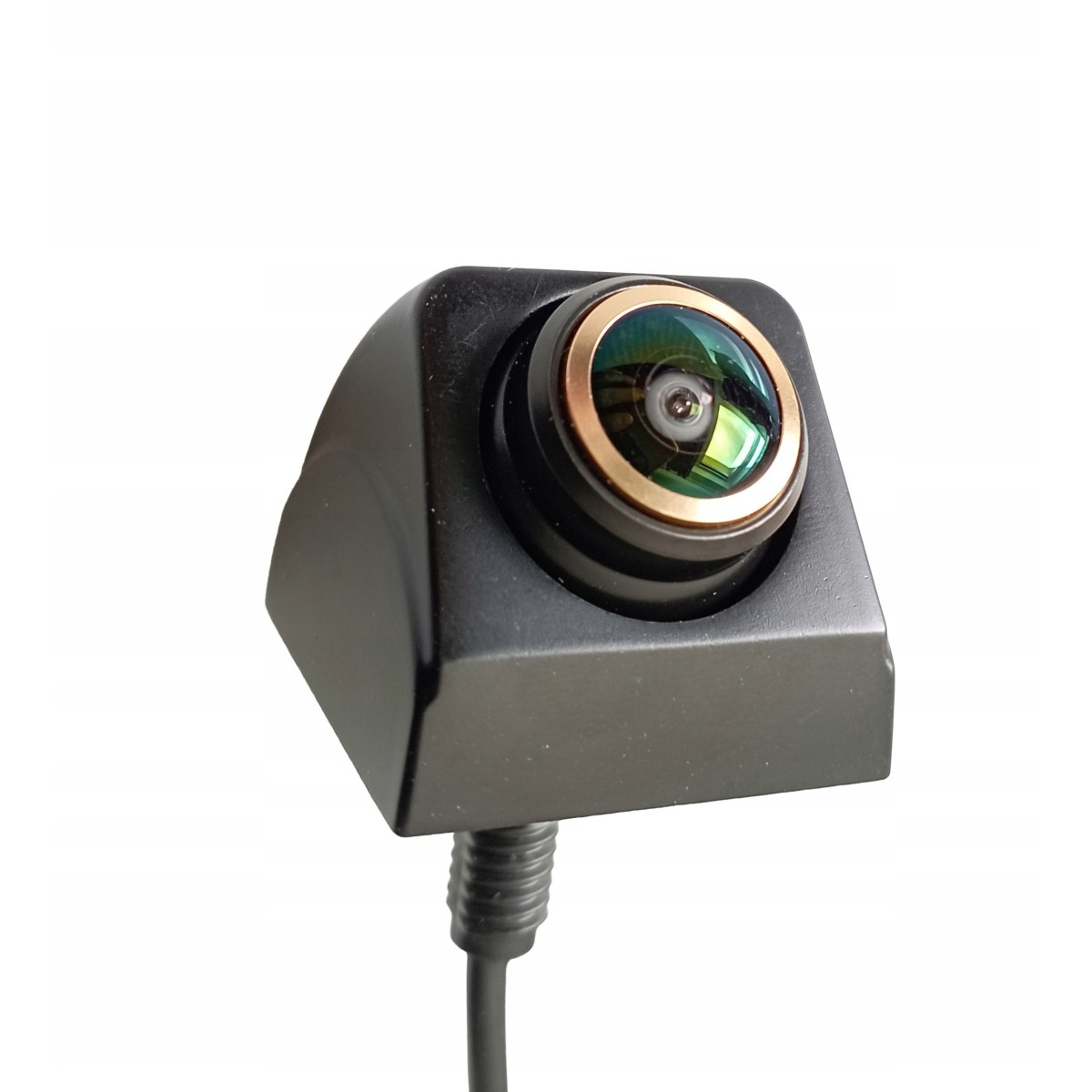

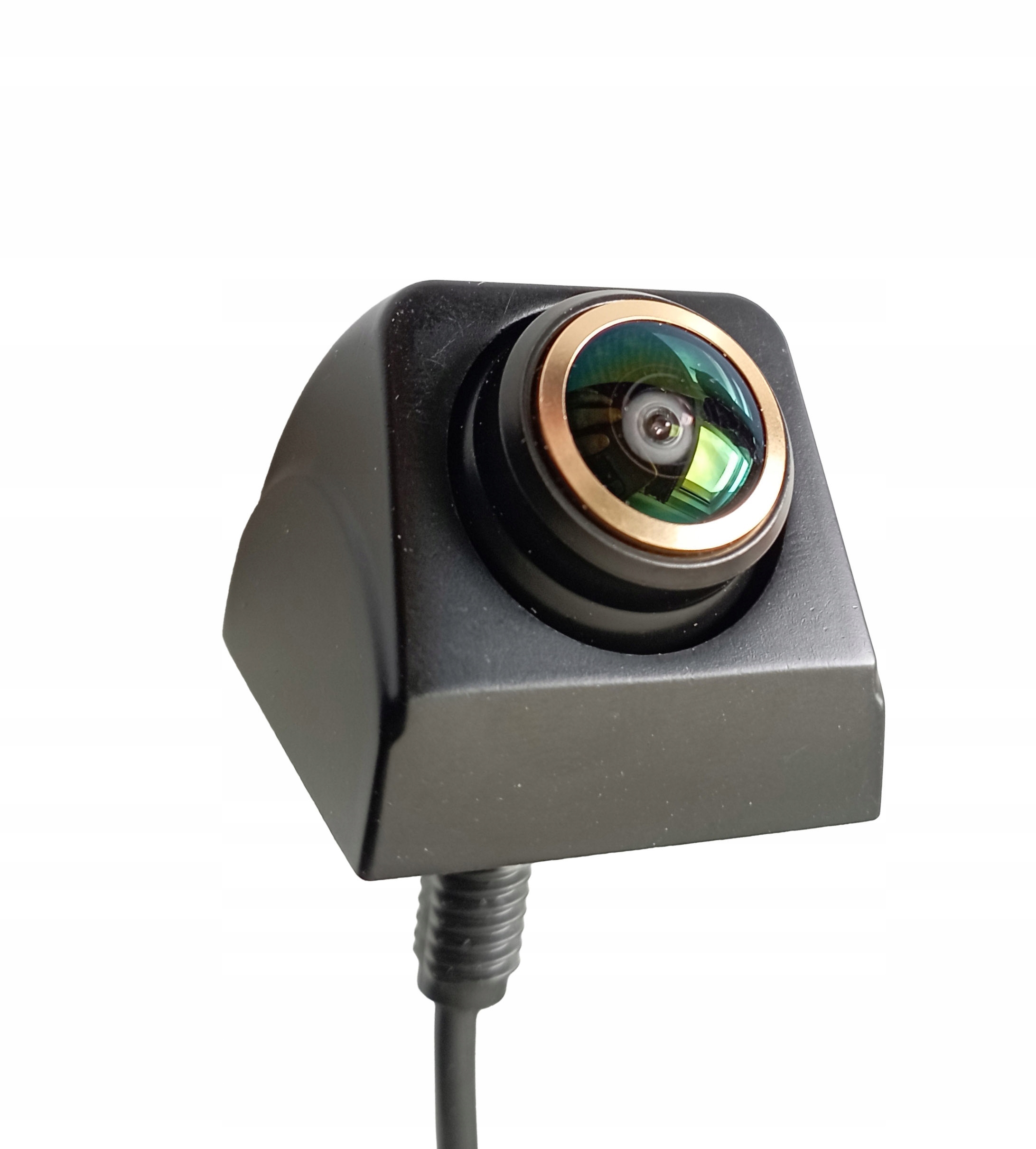

AHD 1920×1080 CVBS HD metal wide angle IP68 reversing parking camera

Metal AHD 1920×1080 175° Premium reversing camera ⭐⭐⭐⭐⭐

NEW! The latest GAHD 1920×1080 model with a viewing angle of up to 175°.

The camera works with multimedia stations and car monitors that support the AHD1080p standard.

⏺️ATTENTION! When connecting the camera to a multimedia station, set the appropriate image transmission system for the camera in the radio settings.

The camera lens can be locked in a given position.

Specification:

• Standard: AHD / CVBS (PAL)
• Viewing angle: AHD 175° / CVBS 125°
• Resolution: AHD 1920×1080 / CVBS 1280×720
• Light sensitivity: 0.01 LUX
• Waterproof: IP 67/68
• Connection: RCA
• Dimensions: 31x25x25mm
• Possibility to change image encoding from AHD to CVBS
• Possibility to disable auxiliary lines
• Mirror image capability
• Starlight Night Vision - excellent visibility at night!
• 12-24V power supply

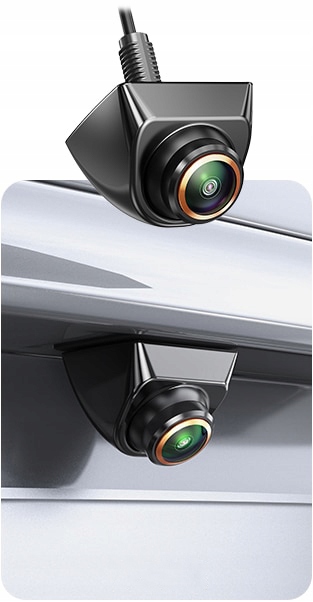

Thanks to its universal design and detachable body, the camera can be mounted almost anywhere in the vehicle, as well as in an inverted position, e.g. on the rear door of a bus or in the STOP light.

⏺️ATTENTION! The camera should only be connected using the cables included in the set. Connecting the camera to other cables may cause permanent damage due to the possibility of a different pin order on the plug.

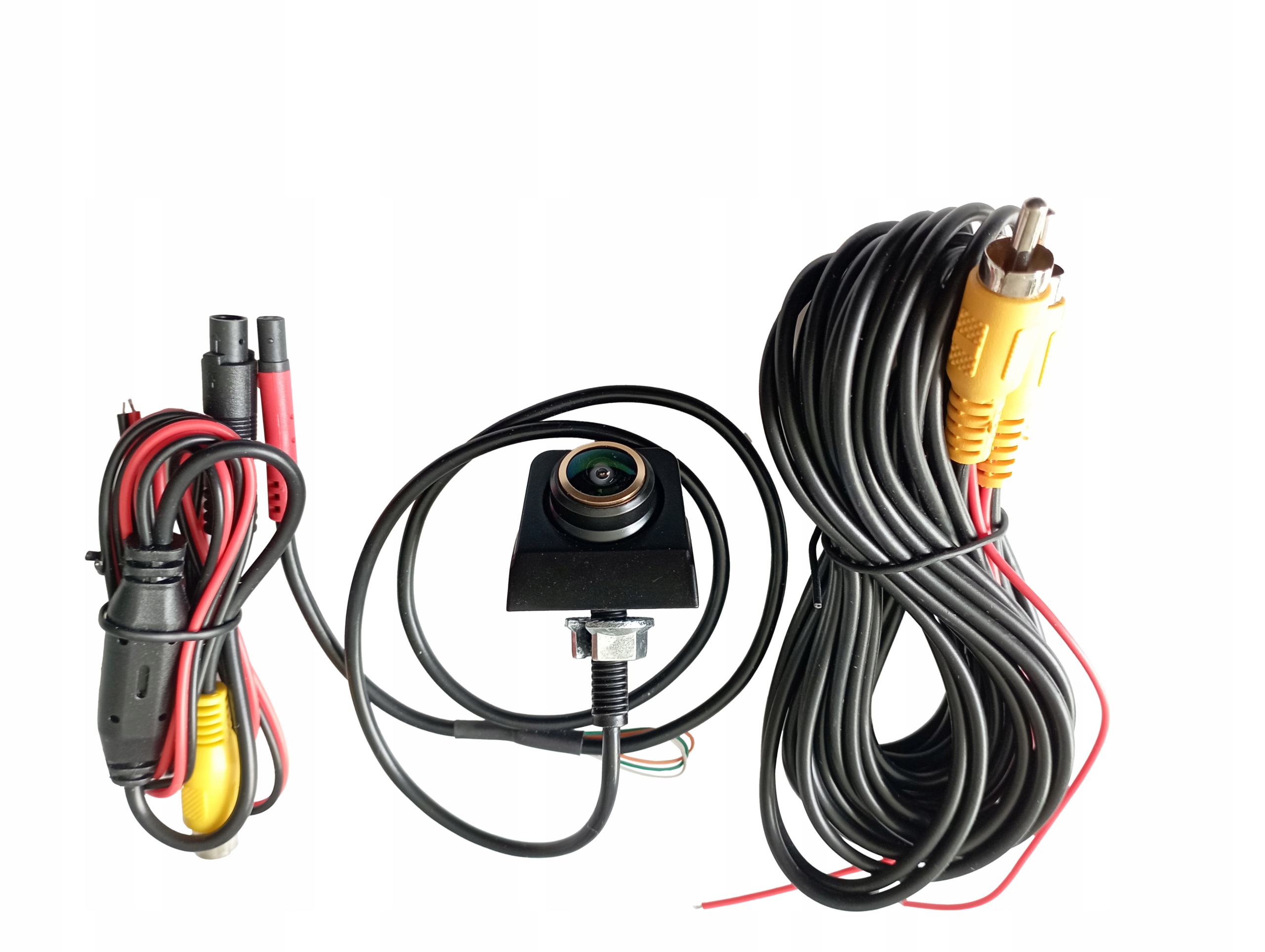

Included in the set:

• AHD reversing camera
• Power cable
• 6m video cable
• Washer
• Nut

⏺️ATTENTION! When connecting the camera to the multimedia station, select the appropriate image transmission system.

⏺️The camera is pre-configured for the AHD system. After cutting the orange loop, the camera will switch to the CVBS system. To take full advantage of the camera's capabilities, we recommend selecting AHD mode.
