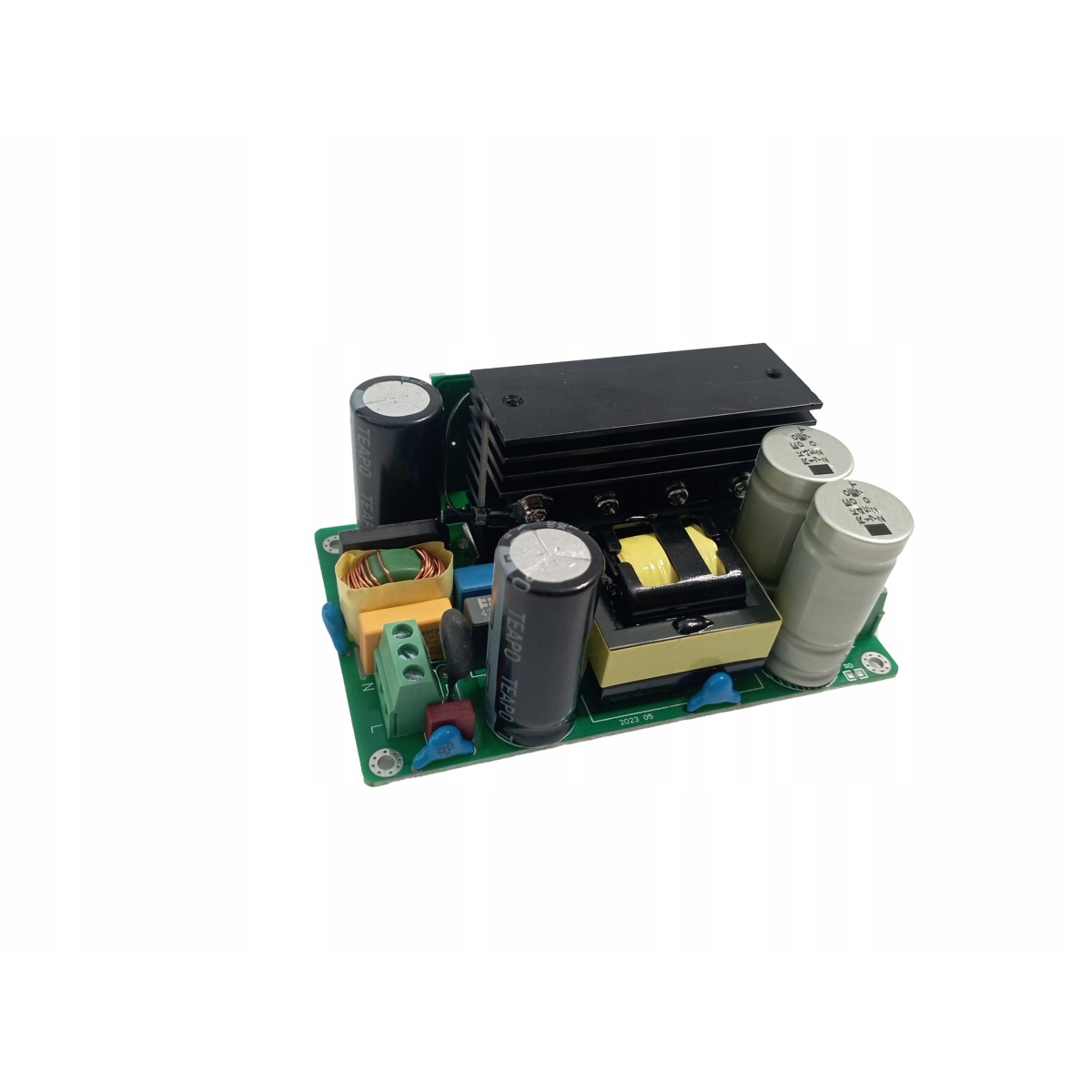

IRS2092S dual symmetrical audio amplifier power supply +-48V DC 500W 230V

Dual symmetrical audio amplifier power supply, e.g. for IRS2092S and other circuits, with dual output voltage, positive and negative +-48V with a maximum power of 500W.

This power supply has a triple output, i.e. +48V, GND and -48V, the input voltage is standard 230V AC, and it is designed for audio amplifiers. The maximum power without active cooling is approximately 60W at room temperature; current consumption above this value requires active cooling in the form of a fan. The product is designed for installation in a suitable enclosure.

Technical parameters:

• Input voltage: 230V AC 50Hz + ground
• Output voltage: +48V GND -48V DC
• Auxiliary output voltage (for fan): +-15V DC (300mA)
• Maximum output power: 500W
• Dimensions: 113 x 74 x 56 mm
• Net weight: 260g
• Protections: against overheating, automatically switches off when approx. 70°C is exceeded

Package contents:

• power supply

Note: do not touch the power supply with your bare hands after connecting it to the mains! After disconnecting the power supply, high voltage remains for several minutes due to charged capacitors! Installation only for professional and experienced electronics engineers.

Note 2: Do not load only one line, e.g. only +48V or only -48V; the load should be evenly distributed on both power lines.
