BMS balancer module 8S 12S 16S 20S 24S 100A 200A max for LiFePO4 with Bluetooth

BMS module for 8–24S LiFePO4 batteries. The BMS is configured using an app on an Android or iPhone via Bluetooth.

Specifications:

• configurable number of batteries connected in series: 8–24
• Continuous discharge current: 100A
• Maximum discharge current: 200A
• Maximum charging current: 100A
• Balancing current: 0.6A
• Configurable voltage for each battery: 1–5 V
• Number of temperature sensors: 2
• Configurable overcharge/over-discharge protection in series: 1.2–4.35 V
• short-circuit and overheating protection
• dimensions: 136 x 103 x 14 mm
• Additional sockets: RS485

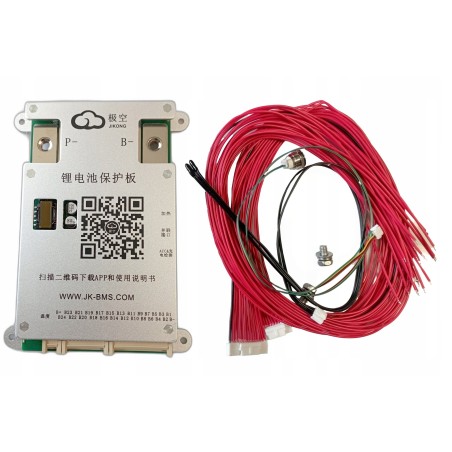

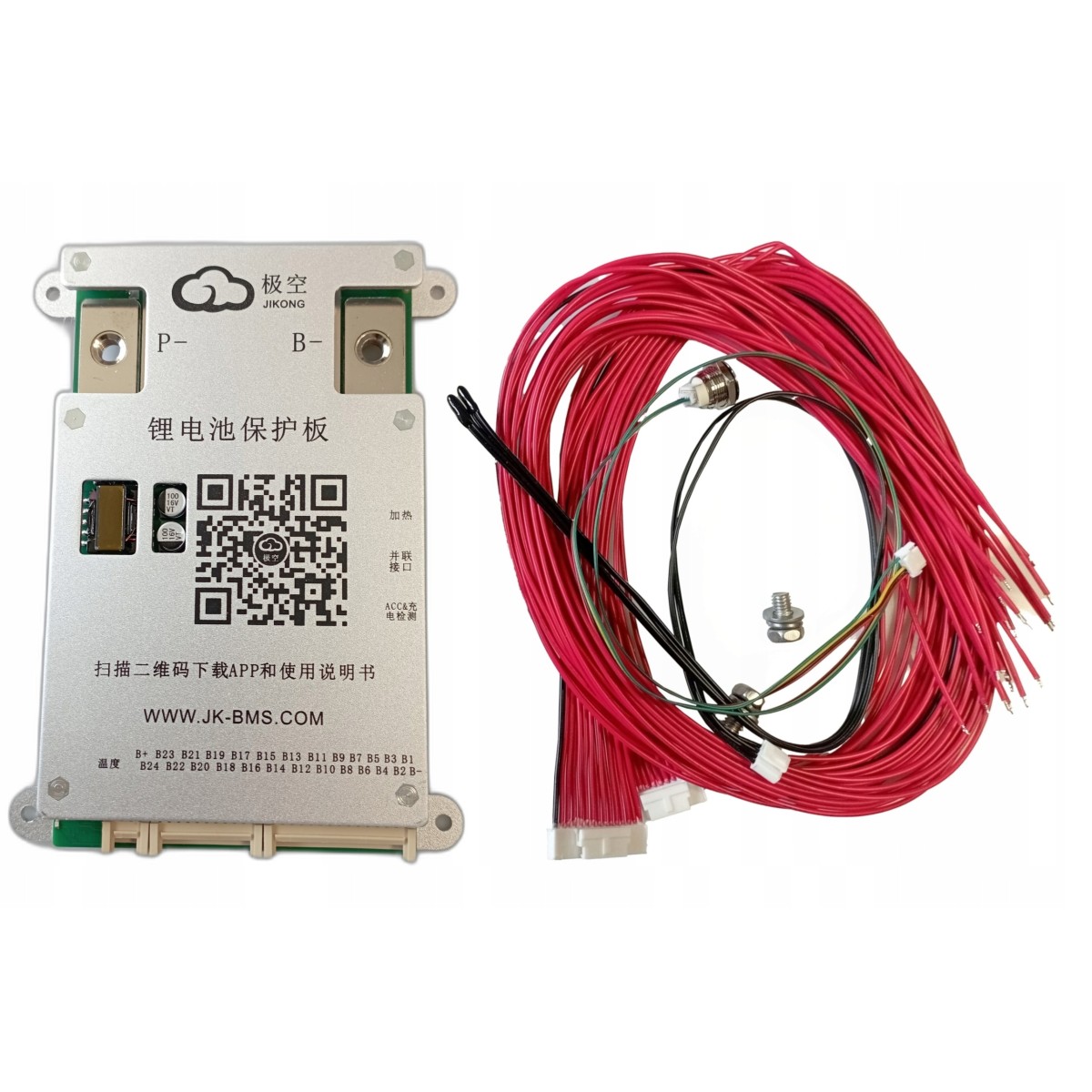

The connection diagram is shown in the photo. The package also includes an English manual and cables. A link to the app is available by scanning the QR code.
