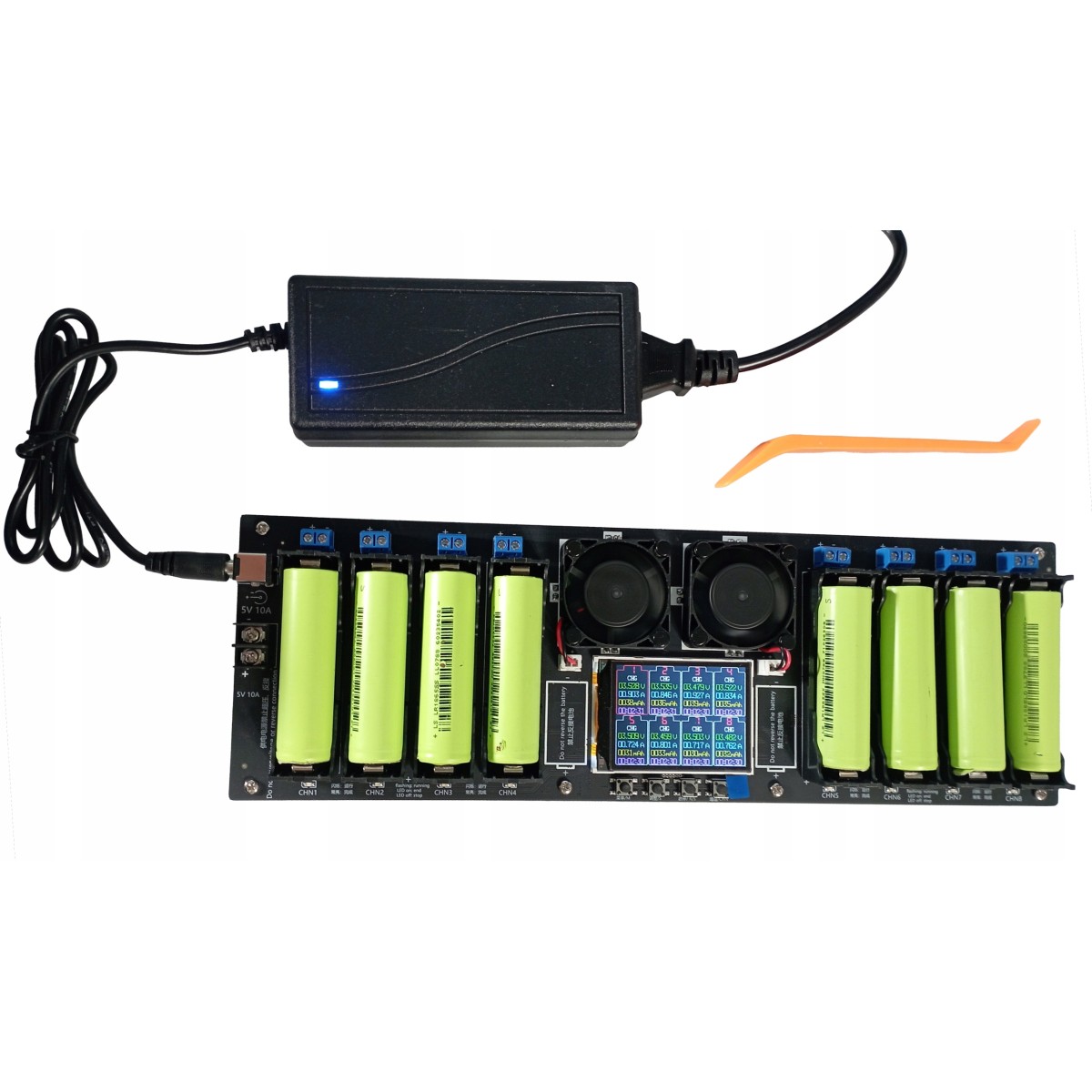

18650 battery cell capacity tester, 8-channel charger + power supply

18560 cell capacity tester, 8-channel.

The tester allows you to check the capacity or charge 8 18650 cells simultaneously. In addition, it also has an automatic mode, which first charges each cell to 4.2V, then discharges it to 3V, thus measuring its capacity, and then recharges it to 4.2V. This saves us a lot of time.

You can also set the operating mode for each cell individually.

Keyboard shortcuts: 1 - first button from the left, 2 - second from the left, 3 - third from the left, 4 - fourth from the left.

1 - short press: shows the graph for the selected cell

1 - long press: shows the main menu, change items with key 1, make changes with key 2, exit the menu: long press 1 again.

Main menu: Sync CHN1 Setting: Yes/No - for the Yes option, all of the following settings apply to all other channels (cells), or No, in which case the settings apply only to channel no. 1. Mode: CHG - charging, DSG - discharging and capacity testing, AUTO - automatic mode, see description above.

2 - change position in the main menu

3 - start/stop - starts or stops the operation of a given channel; holding 3 down for longer starts all 8 channels simultaneously.

4 - change channel

Technical parameters:

• maximum discharge current: 1A
• maximum charging current for each cell: 1A
• maximum charging current at full load of 8 cells: approximately 0.9A-1A per cell
• power supply: 5V 10A
