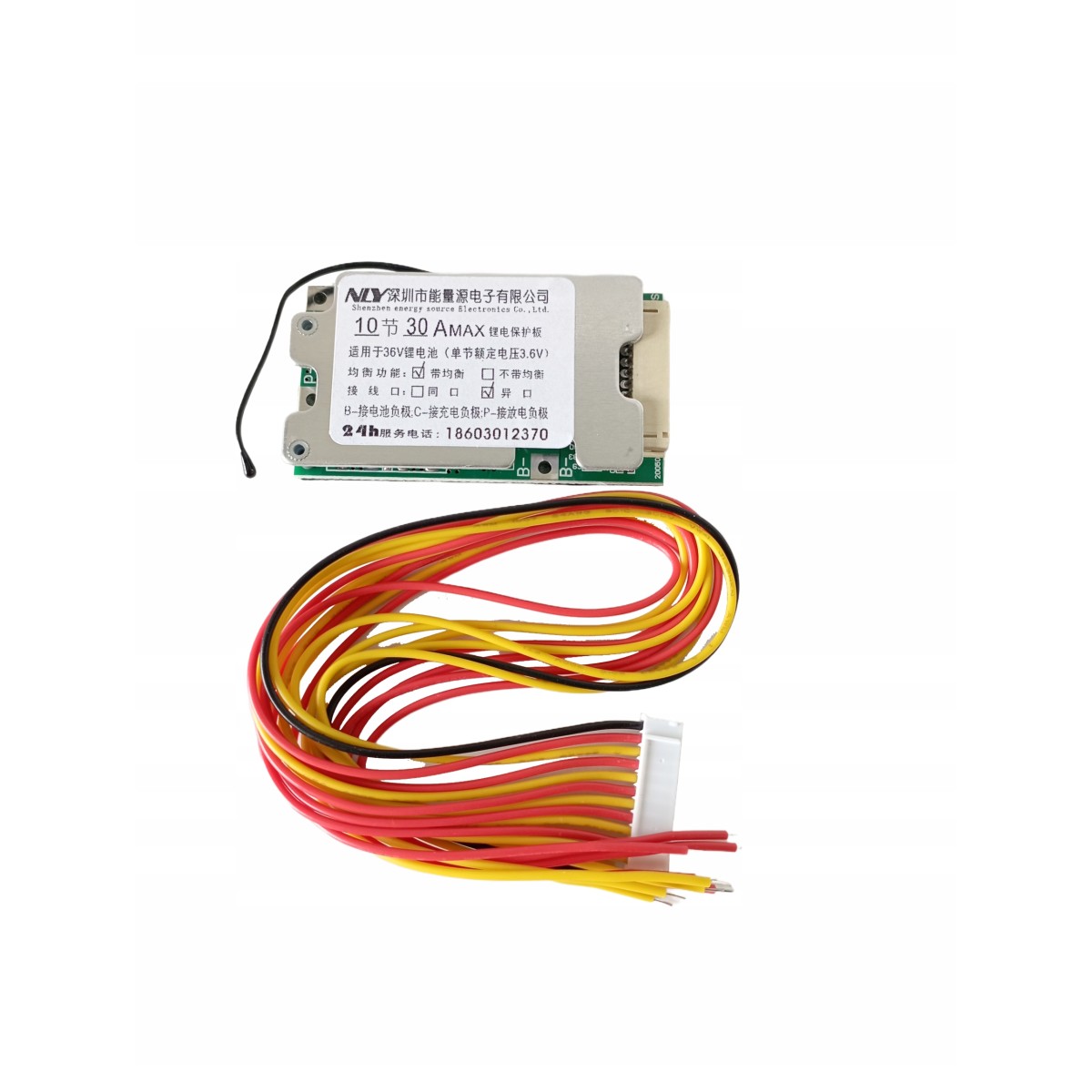

BMS module 10s 30A 18650 cells 36V 42V temperature sensor same charging port

BMS module for building a 10s 36V battery based on 18650 cells. Version with the same discharge/charge port. Specification:

• max charging current 20A
• max discharge current 30A
• continuous discharge current 20A
• minimum cut-off voltage in series 3V
• overcharge protection in series 4.25V
• temperature sensor, cut-off above 60°C
• short circuit protection

The connection diagram is shown in the photo. Dimensions: 64x35x9mm.
