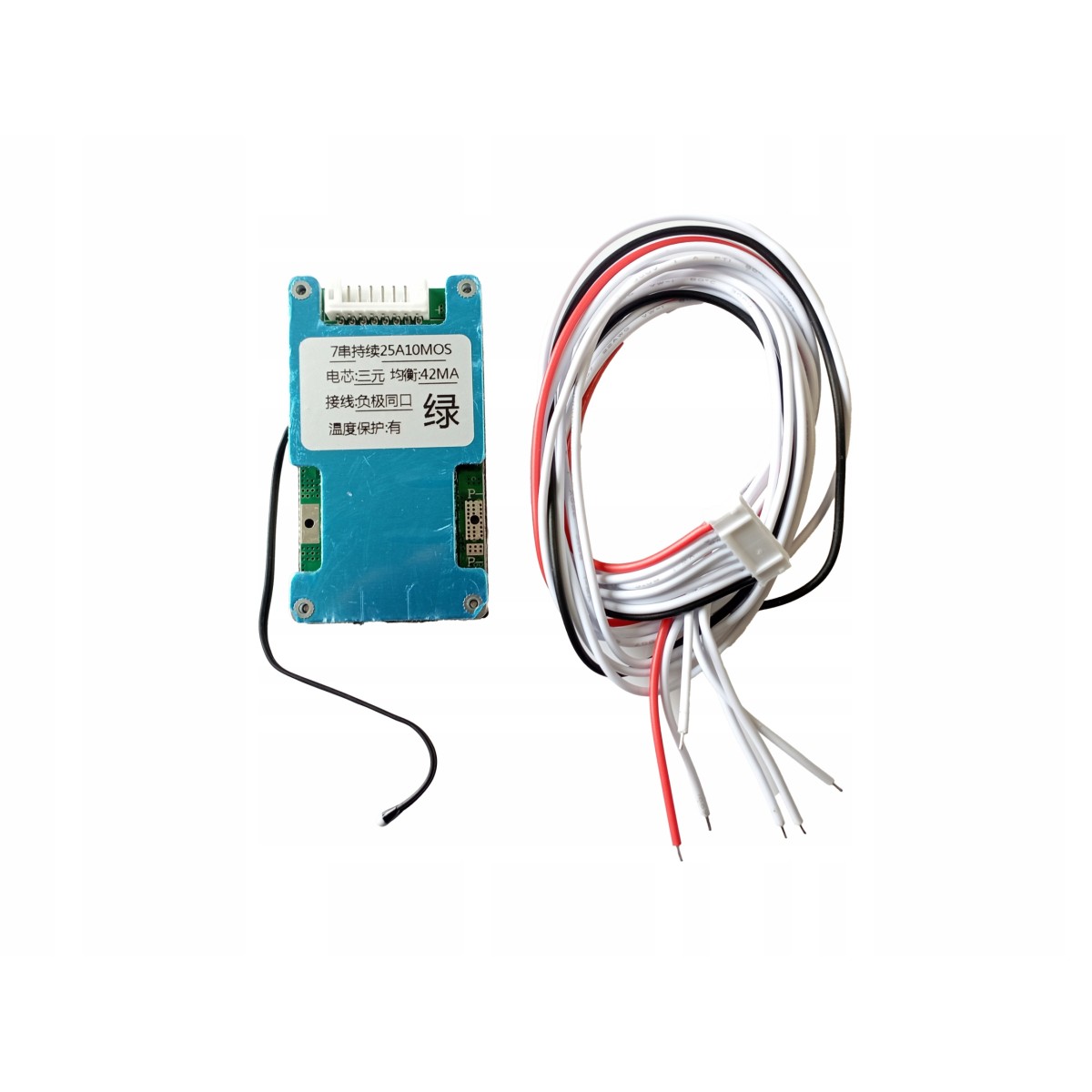

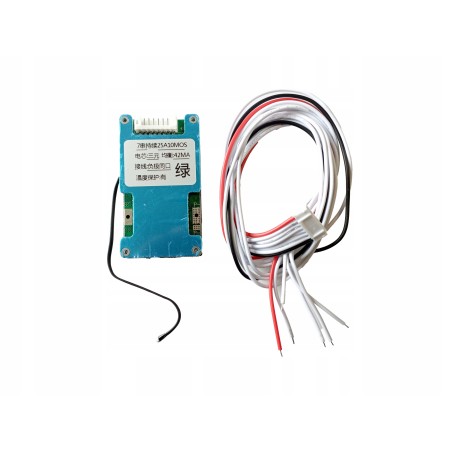

BMS module 7s 25A 50A max for 18650 24V cells, temperature sensor

BMS module for building a 7s 24V battery based on 18650 cells. Version with the same charging/discharging port.

Specification:

• max charging current 5A
• Maximum discharge current 40A
• continuous discharge current 25A
• Minimum cut-off voltage in series 2.7V
• overcharge protection in series 4.25V
• equalisation current: 40mA
• temperature sensor, cut-off above 60°C
• short circuit protection

The connection diagram is shown in the photo. Dimensions: 61 x 34 x 7 mm.
