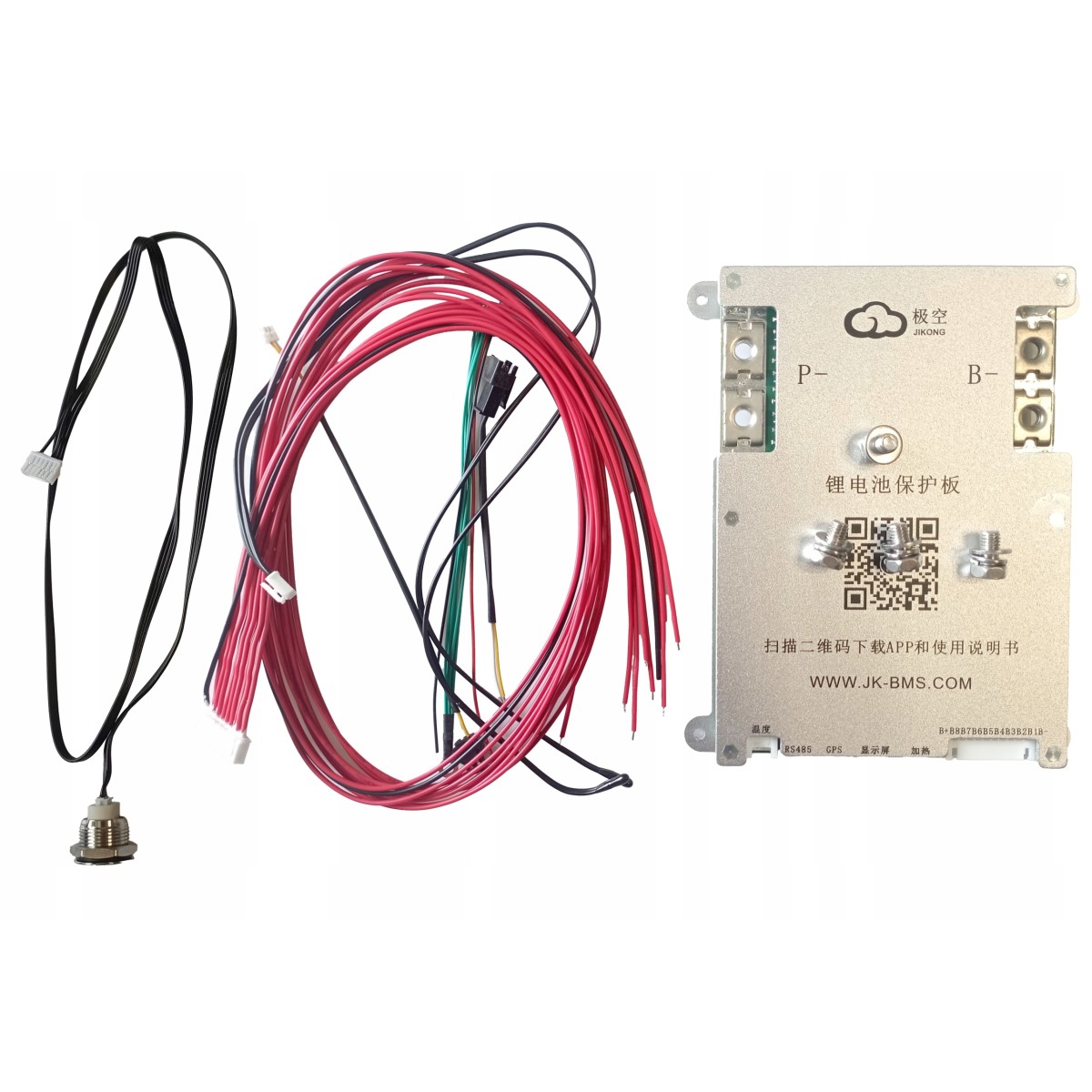

BMS module balancer 4S 6S 8S 200A 300A max for LiFePO4 Bluetooth

BMS module for LiFePO4 4-8S batteries. The BMS is configured using an application for Android or iPhone phones via Bluetooth.

Specification:

• configurable number of batteries connected in series: 4-8
• continuous discharge current: 200A
• Maximum discharge current: 300A
• Maximum charging current: 200A
• balancing current: 1A
• configurable voltage for each battery: 1-5V
• number of temperature sensors: 2
• configurable protection against overcharging/discharging in series: 1.2-4.35V
• short circuit and overheating protection
• dimensions: 153x126x18mm
• additional sockets: RS485

The connection diagram is shown in the photo. The package also includes instructions in English and cables. The link to the application is available after scanning the QR code.
