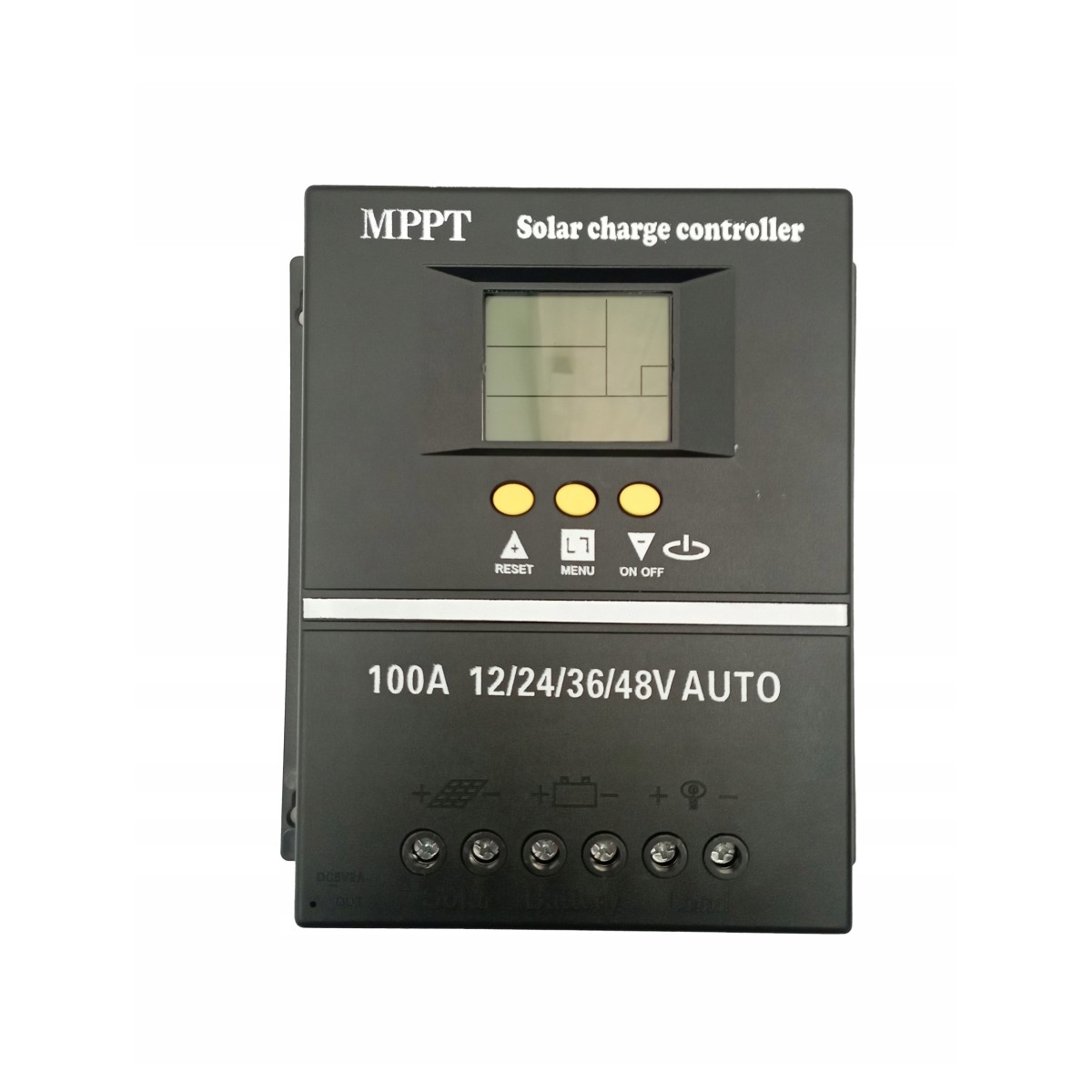

Solar controller for photovoltaic panels 12V 24V 36V 48V 100A PWM + MPPT

Battery charger controller for photovoltaic panels 100A 12V 24V 36V 48V.

NOTE: the device does not fully support MPPT, but as declared by the manufacturer, the device has MPPT and PWM compatible controllers, whatever that means :)

The controller is designed for the following sets:

• 15-25V solar panels, 12V battery
• 30-50V solar panels, 24V battery
• 45-75V solar panels, 36V battery
• 60-100V solar panels, 48V battery

The controller automatically detects the battery type when connected to it. A receiver powered by the same voltage as the battery can be connected to it.

The connection sequence is as follows: 1. battery 2. photovoltaic panels 3. receiver

Parameters:

• Maximum charging current from panels: 100A
• Maximum discharge current of the receiver: no information available, high loads should be connected directly to the battery
• Maximum input power of photovoltaic panels: 1000W (12V), 2000W (24V), 3000W (36V), 4000W (48V)
• USB output: 5V, max 2A, e.g. for charging a mobile phone.
• Discharge protection: adjustable
• Overcharge protection: adjustable
• Load restoration points: adjustable
• Dimensions: 195x183x68mm
• Large cooling radiator
• Supported batteries: lithium-ion and lead-acid

Protections:

• Short-circuit protection
• Open circuit
• Overcurrent
• Overcharge protection
• Over-discharge protection
• Reverse polarity

The device may only be installed indoors.
