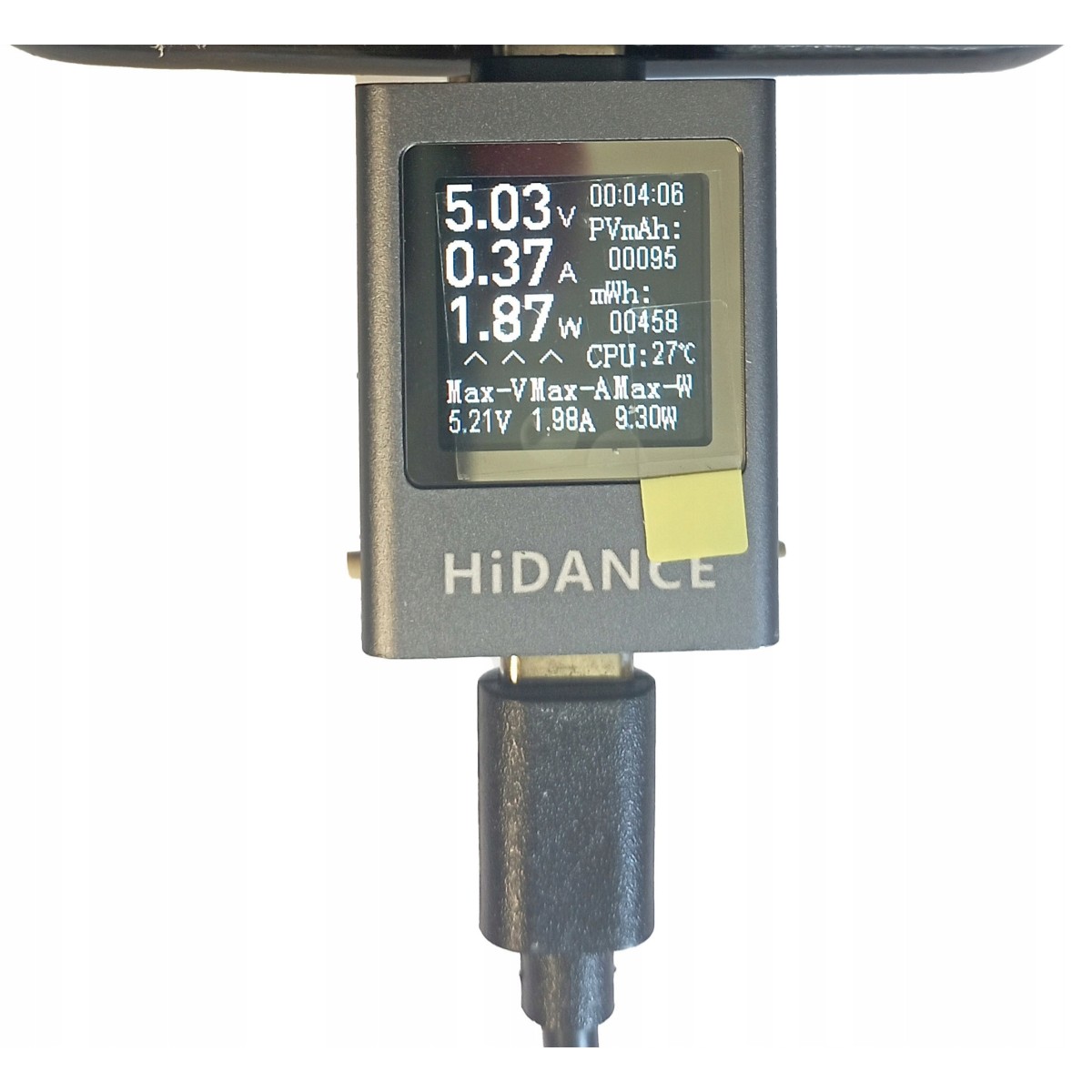

HiDANCE USB-C Port Tester, Voltmeter and Ammeter, 4.5–50 V, 0–12 A

HDC-085C Multifunctional Portable USB-C Port Tester with Display

✅ The HDC-085 tester is a device used for the precise measurement of electrical parameters via a USB-C port.

✅ It enables a wide range of tests, such as voltage and current detection, as well as tests for capacitance, energy, protocol, etc.

✅ The device automatically recognises the PD2.0, PD3.0, PD3.1, PPS, QC2.0, QC3.0, FCP, SCP, AFC, PE, DASH and VOOC protocols.

✅ It features a 0.85" HD OLED display, which clearly presents measurement results and makes work easier. Furthermore, the results shown on the display can be rotated 360° using the buttons.

✅ It is ideal as a reliable diagnostic tool in the electronics, industrial and domestic sectors.

➡️ Key product features:

• Equipped with a 0.85" HD OLED display
• Display can be rotated 360° using the buttons
• Automatic protocol detection: PD2.0, PD3.0, PD3.1, PPS, QC2.0, QC3.0, FCP, SCP, AFC, PE, DASH, VOOC
• Two-way current test function
• Real-time charging power detection
• Supports fast charging test (240W)
• Housing made of durable and damage-resistant aluminium (CNC)
• Adjustable screen brightness to suit your needs
• Controlled via 2 buttons
• Auto-screen-off function
• Lightweight and compact size ensures comfort during use and fits easily in your pocket

➡️ Wide range of displayed data

On the device’s 0.85” display, you can check data such as:

• Voltage (V)
• Current (A)
• Power (W)
• Electricity (Wh)
• Current voltage capacity (PVmAh)
• Maximum current
• Maximum voltage
• Maximum power
• CPU temperature
• Time

➡️ Specifications:

• Model: HDC-085C
• Display: 0.85" HD OLED
• Supports protocols: PD2.0, PD3.0, PD3.1, PPS, QC2.0, QC3.0, FCP, SCP, AFC, PE, DASH, VOOC
• Test interface: USB-C
• Current measurement range: 0A – 6A (peak 12A), (accuracy: 0.01A)
• Voltage measurement range: 4.5V – 50V (accuracy: 0.01V)
• Electricity measurement: 0 - 9999Wh
• Capacity measurement: 0 - 99999mAh
• Power measurement: 0 - 600W
• Operating temperature: 0–45°C
• Material: Aluminium (CNC) + plastic
• Dimensions: 25 x 43 x 10 (mm)

➡️ Package contents:

• 1x HDC-085C portable USB-C tester with black and white display
